Catalogue

HM-0807

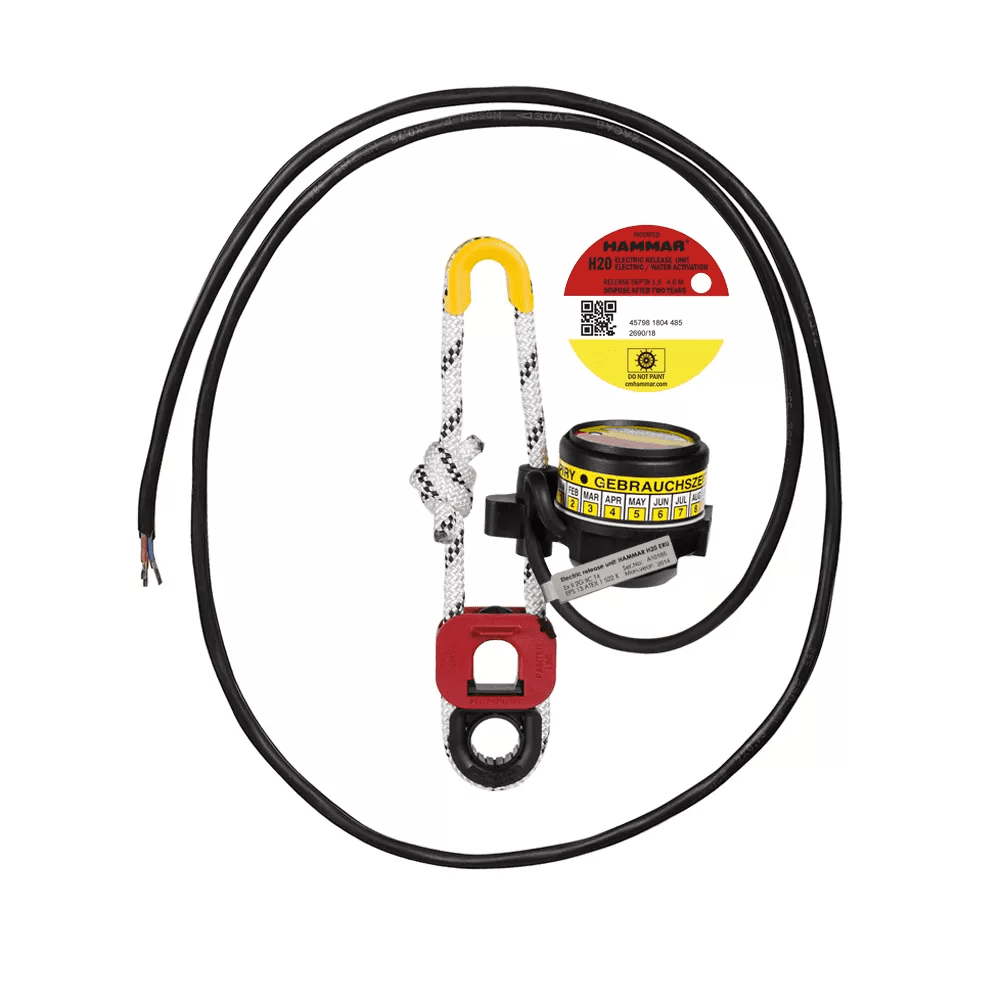

H20 ERU EX - Electric Remote Unit (RED/YELLOW)

, , , , , ,

, , , ,

Description

  • Approvals:IECEX and ATEX approved, EC approved
  • Product Specification:Electric/water activation, with long rope sling for Polar Box
  • Breaking Strength:White rope sling: minimum 15 kN, Weak link: 2,2 +/- 0,4 kN according to SOLAS regulations
  • Release Depth:1,5-4 m
  • Weight:0,3kg
Notes:
Can be installed inside EX-zone, no weak link supplied To meet Ex certification for the ERU Ex a Protection Circuit Card must be installed in between the Control Unit and the ERU. Cable Length: 2,5m
